Truck

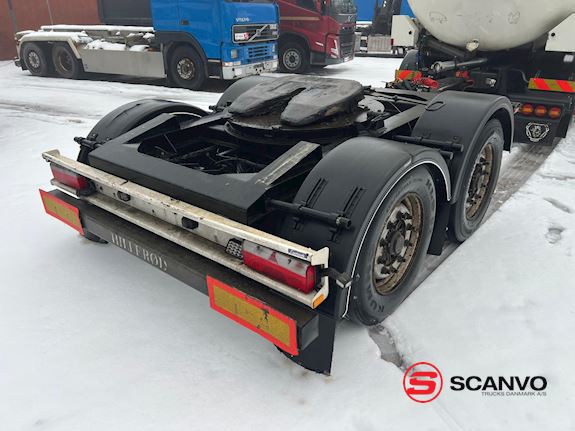

Plandex 18 ton Dolly Dolly
Basic
Type
Trailer
Brand
Plandex
Model
18 ton Dolly
Build-up
Dolly
Axle
2
Condition
Very fine
Registration
Model year
2020
Reg. date
01-10-2020
Reg. no.
DT5655
Latest inspection
13-12-2024
Chassis number (VIN)
SU9WD118DL1PL1696
Ref. no.
7902
Tyres
% remaining
50/50 - 40/40
Dimensions
385/55R22,5
Brakes
Disc brake
ABS
Weight
Overall weight kg
18,000
Tare weight kg
2,670
King pin kg
1000
Coupling
Electrical coupling
EBS + 2 x 7 polet lyssstik
Air-coupling
Duromatic
Coupling height mm
800
V "KN air"
48
Radial bolster
Fixed
Height mm
1150
Suspension
Air
Chassis
Stool height mm
1,150
Wheelbase mm
1310
Wheelbase to 1. axel mm
2745
Shaft type
BPW
Description
Plandex 18 ton dolly model WD1 high drawbar height
coupling height approx. 800 mm with drawbar front part with 57 mm towing eye
in addition, the drawbar can be pushed from 3000 to 3800 mm with 100 mm positions, current position 3450 mm from drawbar eye to center king pin
JOST stool with a coupling height of 1150 mm
BPW axles - air suspension - disc brakes - raising/lowering valves
385/55R22.5 tire mounting M+S on steel rims
LED lights
In good condition with black painted chassis frame
Contact Scanvo for more info +45 87244370 - or email salg@scanvo.dk
