Kässbohrer SLA HS-3 13,6 mtr + 4,5 mtr udtræk + dobbelt ramper Autotransport

Basic

Suspension

Brakes

Chassis

Tyres

Registration

Weight

Dimensions

Truck body / box

Lift

Description

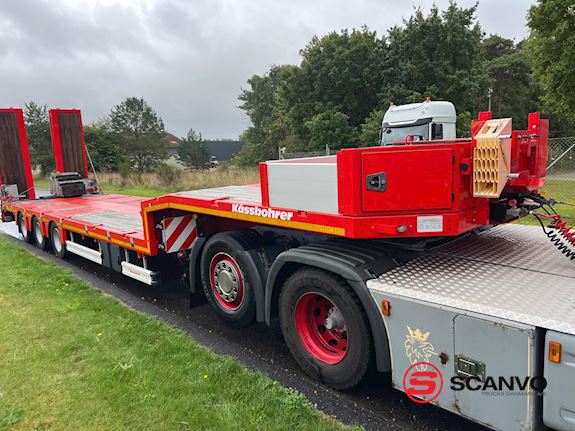

Top equipped Kässbohrer 3-axle machine trailer with 3 forced steered axles + 6200 mm extension & double hydraulic ramps

- BPW axles - drum brakes - air suspension

- 245//75R17.5 M+ S + "3PMFS" approved tires

- Automatic axle lift on 1st axle

- All 3 axles are forced steerable

- Bottom covered with strong hardwood + steel

- extension for widening planks which are also included in hardwood with a width of 300 mm

- 2 divided loading ramps Length 2630 + 1380 mm x Width 850 mm hydraulic ramps with climbing X cross welded on for better grip on the outside and hydraulic lateral displacement of the ramps

- Hydraulic pump station for the ramps built into the tool cabinet - operated via 24 volt power NATO plug

- 1 pc. hydraulic lateral ramp adjustment

- Hydraulic pump station for ramps integrated into tool cabinet – operated via 24V NATO plug

- 1 additional stainless steel tool box

- 600 mm storage box at the front of the gooseneck for lashing equipment, etc. - Removable 320 mm aluminium side boards on the upper deck (corner posts also removable); open design with 1200 mm long aluminium side boards

- Kingpin adjustable to 2 positions

- Heavy-duty lashing rings on the flatbed section + lashing hooks on the upper deck; prepared with cutouts for container locks in multiple positions; stake pockets (55 x 105 mm) in the side rave

- 2 x 7-pin lighting connectors + 24V power connector for the ramps

- Axle load gauge for all 3 axles

- 4 x extendable wide-load signs with LED position lights + 1 x removable rotating beacon at the rear

- 4 x LED work lights – 2 on the side + 2 at the rear Rear – LED 3-chamber tail lights

- Length of drop-deck section: 8,850 mm + rear slope: 550 mm (Total: 9,400 mm)

- Length of upper deck: 3,100 mm flat section + 750 mm slope section – 1,350 mm open + 1,200 mm enclosed with aluminum sides + 600 mm storage box (Total: 3,900 mm)

- Deck height: 900 mm

- RAL red chassis with painted wheel hubs

Optional extras available, such as loose steel stakes or other accessories
