Truck
DAPA 20 ton wirehejs Container system
Basic
Type
Drawbar
Brand
DAPA
Model
20 ton wirehejs
Build-up
Container system
Axle
2
Condition
Very fine
Registration
Model year
2005
Reg. date
02-05-2005
Reg. no.
LP8867
Latest inspection
03-07-2024
Chassis number (VIN)
UHAE203XCLD026559
Ref. no.
7781
Tyres
% remaining
60/70 - 10/0
Dimensions
275/70R22,5
Brakes
Drum brakes
ABS
Weight
Loading capacity kg
14,800
Overall weight kg
20,000
Tare weight kg
5,200
King pin kg
1000
Coupling
Electrical coupling
EBS + 15 polet lysstik
Air-coupling
duromatic
Manufacturer
57 mm træk øje
Coupling height mm
850
Suspension
Air
Chassis
Wheelbase to 1. axel mm
4680
Axle load kg
10000 + 10000
Shaft type
BPW
Working light
Total length mm
7850
Hydraulic 3
Toolbox
Hoist
Remote control
ja
Wire
Make
HMF
Type
TF320
Serial number
0590512
3 way tilt
Stop mm
5720
Tippers
3-way
Description

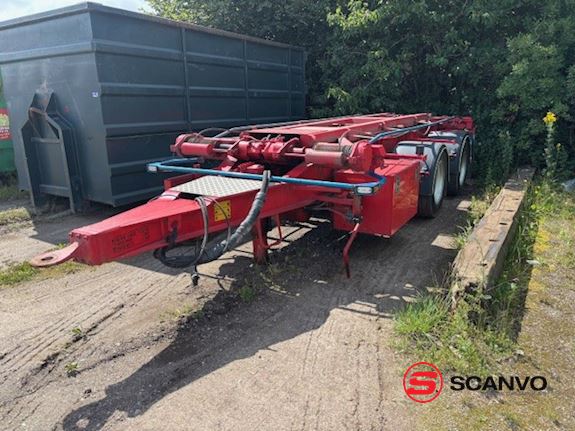

DAPA 20ton model E20 wire hoist trailer
HMF model TF320 3-way wire hoist - 2 container stops - rear stop measurement to front traction roller rear stop = 5720 mm - front stop + 5470 mm
remote control hoist
newer toolbox
Can drive 6 - 7.0 mtr. container (see PDF drawing under photos) - height to top edge of container rollers approx. 1200 mm
previously prepared for air outlet for automatic tailgate not mounted
bumper with max- 500 mm manual extension
BPW axles - drum brakes - air suspension - raising/lowering valves
LED rear lights and 2 x 2 pcs. LED reverse/work lights at rear and at 1st axle
Chassis red undercarriage appears in very good condition renovated for approx. 3 years ago - tip piston and oil engine sweats/oil spills
